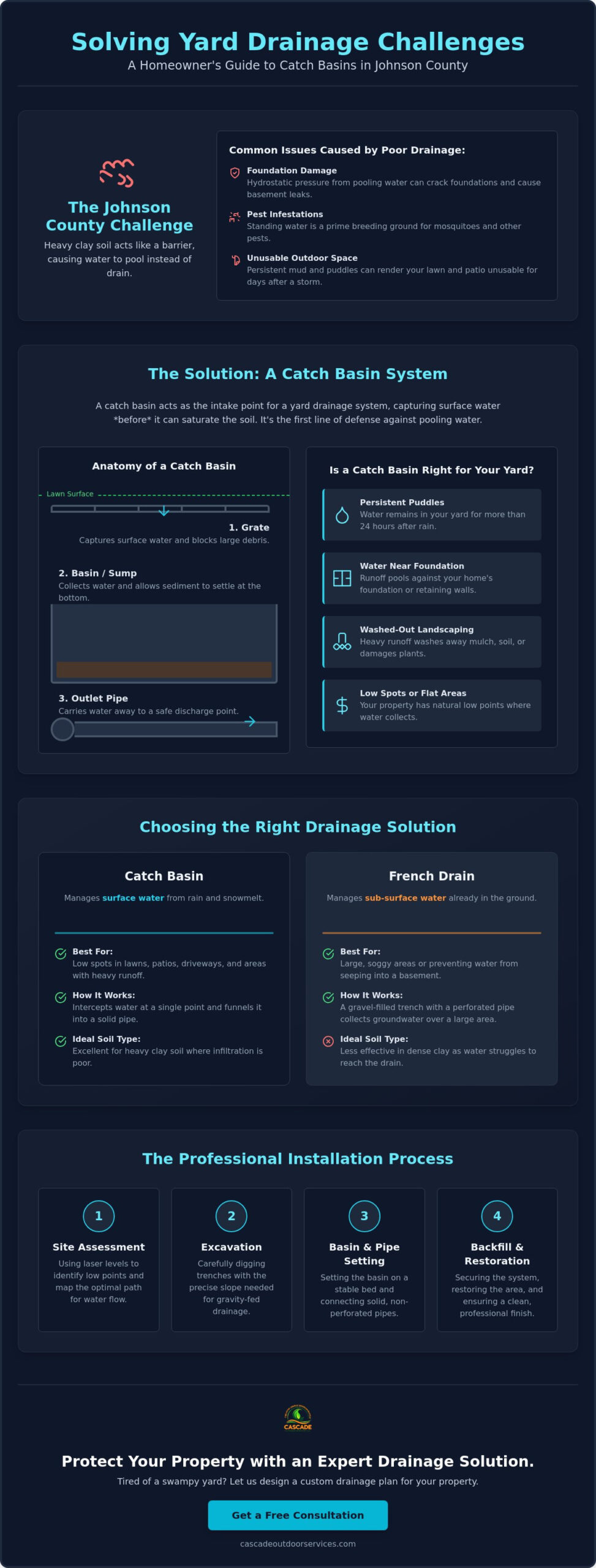

Catch Basin Installation for Yard Drainage: The Johnson County Homeowner’s Guide (2026)

Last Tuesday, your dog likely came inside with paws caked in heavy Johnson County clay, leaving a muddy trail that leads straight toward the basement door where you’ve noticed water beginning to pool. It’s a stressful sight that many of our neighbors face. When our region’s dense soil meets the increasingly intense storm cycles of 2026, a beautiful lawn can quickly become a breeding ground for mosquitoes and a serious threat to your home’s foundation. You shouldn’t have to dread every heavy downpour or worry about the structural integrity of your property.

A professional catch basin installation for yard drainage is the most effective way to intercept this surface water and redirect it before it ever has a chance to saturate the ground. We believe that property improvements should be a lasting investment in your lifestyle, providing the peace of mind that comes with quality craftsmanship. In this guide, we’ll explain how to identify the best locations for drainage points, how to navigate local permit requirements in cities like Overland Park or Olathe, and what it takes to design a system that keeps your property dry and usable all year long.

What is a Catch Basin and Why Does Your Yard Need One?

A catch basin is essentially a buried collection box topped with a heavy-duty grate. It functions as a localized storm drain for your private property. Its primary job is to act as the intake point for a larger drainage system, capturing water at the surface before it has a chance to saturate the soil. While many homeowners confuse them with French drains, the two serve very different roles. A French drain manages groundwater that is already trapped beneath the surface. In contrast, a catch basin targets surface runoff from heavy rains or snowmelt. This makes catch basin installation for yard drainage the first line of defense for protecting flat areas, patios, and low spots where water naturally tends to pool.

In our region, where heavy clay often prevents water from soaking into the ground, these basins are vital. They provide an immediate exit strategy for water that would otherwise sit for days. By intercepting runoff early, you reduce the risk of mud, mosquitoes, and long-term property damage. It’s about more than just moving water; it’s about maintaining the integrity of your landscape and ensuring your outdoor spaces remain usable even after a typical Johnson County downpour.

Key Components of a Standard Catch Basin

Every professional-grade basin consists of three main parts that work together to keep your yard dry. The grate is the only visible portion. We choose materials based on where the basin sits; decorative plastic or metal grates work well for foot traffic on patios, while heavier reinforced options are better for lawn areas. Below the grate lies the basin itself. These boxes feature a deep “sump” area located below the outlet pipe. This design allows sediment, leaves, and debris to settle at the bottom rather than entering and clogging your pipes. Finally, the outlet connects the basin to a solid PVC or corrugated pipe, which carries the captured water to a safe discharge point. High-quality grading and drainage services ensure these components are sized correctly for the volume of water your property handles.

Signs Your Yard Specifically Needs a Catch Basin

You don’t always need a complex network of pipes to solve a problem, but certain red flags indicate that a catch basin is necessary. If you notice persistent “bird baths” or puddles that remain in your grass for more than 24 hours after a storm, your soil isn’t draining fast enough. Another critical sign is water pooling directly against a retaining wall or your home’s foundation. This creates hydrostatic pressure that can lead to structural cracks or basement leaks. You might also notice heavy runoff flowing from a neighbor’s property or down a steep hillside. In these cases, catch basin installation for yard drainage provides a dedicated point to catch that rushing water before it washes away your mulch or floods your lawn.

Solving Standing Water in Johnson County’s Heavy Clay Soil

The geography of Overland Park and Olathe presents a unique challenge for homeowners. Our region is defined by dense, heavy clay soil that acts more like a sealant than a filter. When a storm hits, this soil quickly becomes saturated, creating a “bowl effect” where water sits on the surface with nowhere to go. Instead of waiting for water to soak into the earth, catch basin installation for yard drainage creates a direct shortcut. It allows runoff to bypass the slow-percolating clay entirely, moving it into a controlled pipe system immediately. This proactive approach is the only way to ensure your lawn doesn’t remain a swamp for days after the clouds clear.

Mechanical drainage is required in clay because the soil lacks the natural permeability to process water within a gravel-filled pit before it causes structural saturation. Beyond the soil composition, we also have to account for the intense Kansas freeze-thaw cycles. In winter, the moisture trapped in clay expands as it freezes, which can easily heave or shift a poorly installed basin. We prevent this by using proper bedding techniques and ensuring the basin is anchored correctly, providing perennial reliability regardless of the temperature. If you’re tired of losing your backyard to every storm, our team can help you design a custom drainage plan tailored to your property’s specific topography.

Why Traditional “Dry Wells” Often Fail in JoCo

In many parts of the country, a “dry well” or a simple gravel pit is a common solution. In Johnson County, however, these often lead to the “bathtub effect.” Because the surrounding clay is so dense, the water just sits in the unlined pit, eventually backing up and making the problem worse. Professional catch basins must be piped to a daylight exit or a designated storm sewer to be effective. We always recommend using solid PVC pipe in these installations. Unlike corrugated pipe, solid walls prevent root intrusion and are much easier to clear if debris ever enters the system.

Strategic Placement for Kansas Weather

Success depends on finding the exact low points where water naturally congregates. We typically locate basins at the base of slopes or in valley points between homes. For comprehensive protection, we often integrate these basins with French drains to create a dual-action system. This combination handles both the slow-moving groundwater and the sudden “Gully Washers” common in the Midwest. By capturing high volumes of water during peak rainfall, you protect your landscaping from erosion and keep your foundation safe from the pressure of standing water.

Catch Basins vs. French Drains: Which Solution is Right for You?

Choosing the right catch basin installation for yard drainage depends on where your water originates. It’s a simple distinction: catch basins target water you can see, while French drains manage water you can feel. If your patio turns into a lake during a storm, you need a collection point at the surface. If your lawn feels like a wet sponge for three days after the rain stops, your issue is sub-surface saturation. Understanding this difference ensures you don’t spend money on a system that misses the mark.

Many Johnson County properties benefit from a hybrid system that combines both technologies. By connecting catch basins to a French drain line, we create a comprehensive network that captures immediate runoff and slowly drains groundwater simultaneously. This approach provides the highest level of property protection, especially for homes with walk-out basements or steep backyard slopes. Because catch basins act as surgical fixes for specific low spots, they are often a more affordable starting point for homeowners who don’t need a full-scale perimeter drain.

The Surface Water Specialist: Catch Basins

These systems are best for hardscapes like patios and driveways, or specific “sinkholes” in the turf where water naturally gathers. The main advantage is immediate water removal; once the rain hits the grate, it’s gone. They are also incredibly easy to maintain because you can see exactly when the grate needs to be cleared of leaves. However, they do require that occasional manual check to ensure the intake remains unobstructed during heavy autumn leaf falls.

The Groundwater Specialist: French Drains

If you’re dealing with spongy lawns or a basement that feels damp after every storm, a French drain is usually the better tool. These systems are hidden entirely beneath the turf, using perforated pipe and gravel to pull moisture out of the soil. While they handle massive volumes of sub-surface water, they involve more extensive excavation. Over several decades, they can also be prone to silt buildup if they aren’t installed with high-quality filter fabric. For many, the invisible nature of the drain is worth the extra effort during the installation process.

Maintenance is another deciding factor for many of our neighbors. Cleaning a catch basin usually takes five minutes with a garden trowel to scoop out the sump. Flushing a French drain is a more involved task that might require professional equipment. When we evaluate a property, we look at your long-term goals for the space. We want to provide a solution that offers the quiet satisfaction of a dry yard without creating a constant chore for you. Whether you need a single basin or a complex hybrid network, the goal is perennial reliability and peace of mind.

The Professional Process: Catch Basin Installation Steps

A successful catch basin installation for yard drainage is defined by precision planning before the first shovel hits the dirt. While DIY guides often suggest simply digging a hole and placing a box, professional execution requires a detailed site evaluation. We use high-accuracy laser levels to identify the absolute low point of your landscape and map out a viable path to the exit point. This ensures that the entire system relies on gravity rather than luck. Without this initial data, water may simply sit in the pipes, leading to sediment buildup and eventual system failure.

Once the path is mapped, excavation begins for both the basin and the discharge trench. We dig the basin hole slightly deeper and wider than the unit itself to allow for proper base preparation. We use a layer of crushed stone at the bottom of the excavation to provide a stable, non-shifting foundation. This step is critical in our heavy clay soil, as it prevents the basin from sinking or tilting over time. After the basin is set, we connect the piping with watertight seals and begin the backfill process. We compact the soil in layers to prevent future settling, ensuring your lawn returns to its polished state once the grass grows back.

Calculating the Proper Slope (Pitch)

Gravity is the engine of any drainage system, and it requires a consistent pitch to function correctly. We aim for a 1-2% grade, which provides enough velocity to move water without allowing debris to settle in the line. This prevents water from backing up during the intense storm cycles we often see in Kansas. A 4-inch drainage pipe requires a minimum drop of 1/8 inch per foot to maintain effective gravity flow. Maintaining this precise angle over a long run is where professional expertise becomes invaluable for the longevity of the project.

The “Exit Strategy”: Where Does the Water Go?

Capturing the water is only half the battle; the exit strategy determines the long-term success of the installation. Most systems discharge to a “pop-up” emitter located in a lower part of the yard, where the water can safely disperse without causing erosion. We often integrate these basins with our broader grading and drainage services to ensure total property flow. We also handle the legal considerations of water management, ensuring your new system doesn’t discharge directly onto a neighbor’s property or violate local codes. If you’re ready to transform your soggy lawn into a dry, usable retreat, view our full range of professional drainage solutions today.

Expert Drainage Solutions with Cascade Outdoor Services

A DIY project might seem tempting on a Saturday morning, but catch basin installation for yard drainage requires more than just a shovel and a trip to the hardware store. Precision engineering is what separates a temporary fix from a perennial solution. We’ve seen many “weekend warrior” attempts fail because the pitch was slightly off or the basin wasn’t properly anchored in our heavy clay. At Cascade Outdoor Services, we take pride in the physical labor so you don’t have to; we ensure every connection is watertight and every slope is calculated for maximum efficiency. It’s the difference between a yard that merely survives a storm and one that remains pristine through it.

Our local expertise is rooted in a deep understanding of Johnson County’s specific climate and terrain. We know that the intense storm cycles of 2026 demand systems that can handle high volumes of water without faltering. We frequently integrate drainage points with our Timber Retaining Walls to prevent the buildup of hydrostatic pressure. By moving water away from these structures, we protect your investment from shifting or collapsing. This provides the quiet satisfaction that comes from quality craftsmanship and the peace of mind that your home’s foundation is secure.

Comprehensive Property Protection

Real property protection isn’t about a single pipe; it’s about a metamorphosis of your entire outdoor environment. We combine catch basins with French drains and professional downspout burial to create a seamless network. This approach shields your landscape and hardscape from the erosive power of uncontrolled runoff. Whether you’re managing a private residence or overseeing drainage for an HOA or commercial property in Johnson County, we tailor our solutions to fit the unique topography of your land. We view your exterior environment as a vital extension of your home’s interior, making property improvements an essential lifestyle investment.

Ready to Dry Out Your Yard?

Before you start digging, consider the benefits of a professional evaluation. We look at the big picture, identifying how water moves across your entire lot to prevent solving one problem while accidentally creating another. Our team is invested in the long-term health and beauty of your property. We are the knowledgeable neighbors who have the right tools and the professional eye to get the job done correctly the first time. We focus on longevity, suggesting that we aren’t just providing a quick fix but are building something that lasts.

Don’t let another storm turn your backyard into a muddy obstacle course. You deserve a dry, usable lawn and the reassurance that comes from a well-maintained environment. Take the first step toward a permanent solution and schedule your drainage consultation today with our expert team.

Secure Your Property with a Lasting Drainage Strategy

Johnson County’s heavy clay doesn’t have to dictate the usability of your backyard. By choosing a professional catch basin installation for yard drainage, you’re investing in a system that intercepts runoff before it can threaten your home’s foundation or turn your lawn into a swamp. We’ve seen how precise slope calculations and the right “exit strategy” transform problematic low spots into dry, polished spaces that your family can enjoy all year. A well-executed plan ensures that water is managed at the source, preventing the long-term saturation that leads to mud and mosquitoes.

Since 2016, Cascade Outdoor Services has specialized in JoCo clay soil solutions. We use precision laser-leveled drainage plans to ensure every drop of water has a clear, gravity-fed path away from your property. We take pride in building systems that offer perennial reliability, giving you the peace of mind to watch a heavy summer storm without worry. Your outdoor environment is a vital extension of your home; it’s time to treat it with the craftsmanship it deserves. Request a Drainage Evaluation from Cascade Outdoor Services and take the first step toward a drier, more beautiful landscape today.

Frequently Asked Questions

How often do I need to clean my catch basin?

You should inspect and clean your catch basin at least twice a year, typically during your spring and fall cleanups. It’s also wise to check the grate after a heavy Johnson County “gully washer” to ensure leaves or mulch haven’t blocked the intake. Clearing the sump at the bottom prevents debris from entering your pipes and causing a much larger issue deep underground.

Will a catch basin attract mosquitoes?

A properly functioning system actually reduces mosquito populations by eliminating the standing water where they breed. While the sump area at the bottom of the basin may hold a small amount of water between rains, it’s not the same as a stagnant “bird bath” in your lawn. For added peace of mind, you can use eco-friendly mosquito dunks in the basin during the height of the Kansas summer.

Can I drive my lawnmower over a catch basin grate?

You can safely drive a standard residential zero-turn or push mower over most catch basin grates. We install high-quality, light-traffic rated grates designed specifically for lawn areas. If you plan to move heavier equipment like a skid-steer or a large tractor across the area, you’ll need a reinforced or traffic-rated grate to prevent cracking the housing.

What is the best size catch basin for a residential yard?

Most residential properties in Overland Park and Olathe are well-served by 9-inch or 12-inch square basins. The specific size depends on the volume of water the low spot collects during a peak storm. A larger basin provides a bigger target for rushing water and a deeper sump for catching sediment, which is often beneficial in our heavy clay environments.

Can I connect my downspouts directly to a catch basin?

Connecting your downspouts directly to a catch basin is a highly effective strategy for comprehensive water management. This setup allows you to handle roof runoff and surface yard drainage through a single, streamlined pipe system—you can read more about how professional roof rejuvenation and repair services complement your home’s overall water management strategy. It’s a common feature in a professional catch basin installation for yard drainage, as it keeps high volumes of water away from your home’s foundation.

How much does catch basin installation cost in Johnson County?

The total investment for your project depends on several local variables, including the number of basins required and the length of the discharge pipe. Factors like the depth of the excavation in our dense clay and the type of grate material you choose also influence the final cost. We focus on providing customized plans that offer long-term reliability rather than a temporary, low-quality fix.

Do I need a permit for yard drainage work in Overland Park or Olathe?

Permit requirements vary depending on whether you live in unincorporated Johnson County or within city limits like Olathe. While simple drainage repairs often don’t require one, larger projects involving significant land disturbance or work near a floodplain might. It’s always best to check with your specific city’s building department or public works office before starting any major landscape metamorphosis.

What happens if my catch basin outlet gets clogged?

If the outlet pipe becomes clogged, water will back up into the basin and eventually overflow into your yard. This is why we prioritize using solid PVC pipe during a catch basin installation for yard drainage; it’s much easier to clear with a garden hose or a plumber’s snake than flexible, corrugated tubing. Regular maintenance of the basin sump is the best way to prevent these clogs from forming.
