Retaining Wall Permit Requirements in Johnson County, KS: The 2026 Homeowner Checklist

A homeowner in Overland Park recently watched their new timber wall bulge after a single heavy storm because they skipped the engineering phase required by local code. Understanding the retaining wall permit requirements Johnson County KS is more than just avoiding city fines; it’s structural insurance against our region’s notorious expansive clay soil. You deserve to enhance your property’s beauty without the nagging worry of a “Stop Work” order or a structural failure during the next spring thaw.

We know that the differing rules between Olathe, Shawnee, and unincorporated areas can feel like a maze. This 2026 homeowner checklist provides a clear path through the bureaucracy to give you a definitive “yes” or “no” on your permit needs. You’ll learn the specific height thresholds for your city, the timeline for approval, and how to find a licensed contractor who handles the red tape for you. This guide ensures your landscape metamorphosis is built on a solid foundation, allowing you to enjoy the quiet satisfaction of a job done correctly the first time.

Retaining Wall Permit Checklist: Do You Need One in 2026?

Before you pick up a shovel, you need to determine if your project falls under the jurisdiction of local building officials. In 2026, the retaining wall permit requirements Johnson County KS remain strict to ensure the safety of our neighborhoods and the longevity of our shared spaces. Most homeowners start with a simple question: “Do I really need a permit for this?” The answer depends on a few critical variables that go beyond aesthetics.

• Height Threshold: Does the wall exceed 4 feet when measured from the bottom of the buried footing to the top of the structure?
• Surcharge Loads: Is there a driveway, swimming pool, or steep slope within a distance equal to the wall’s height?
• Structural Support: Will the wall support a fence or be part of a tiered landscape system?
• Earthwork Volume: Does the project involve excavating or shifting more than 50 cubic yards of soil?

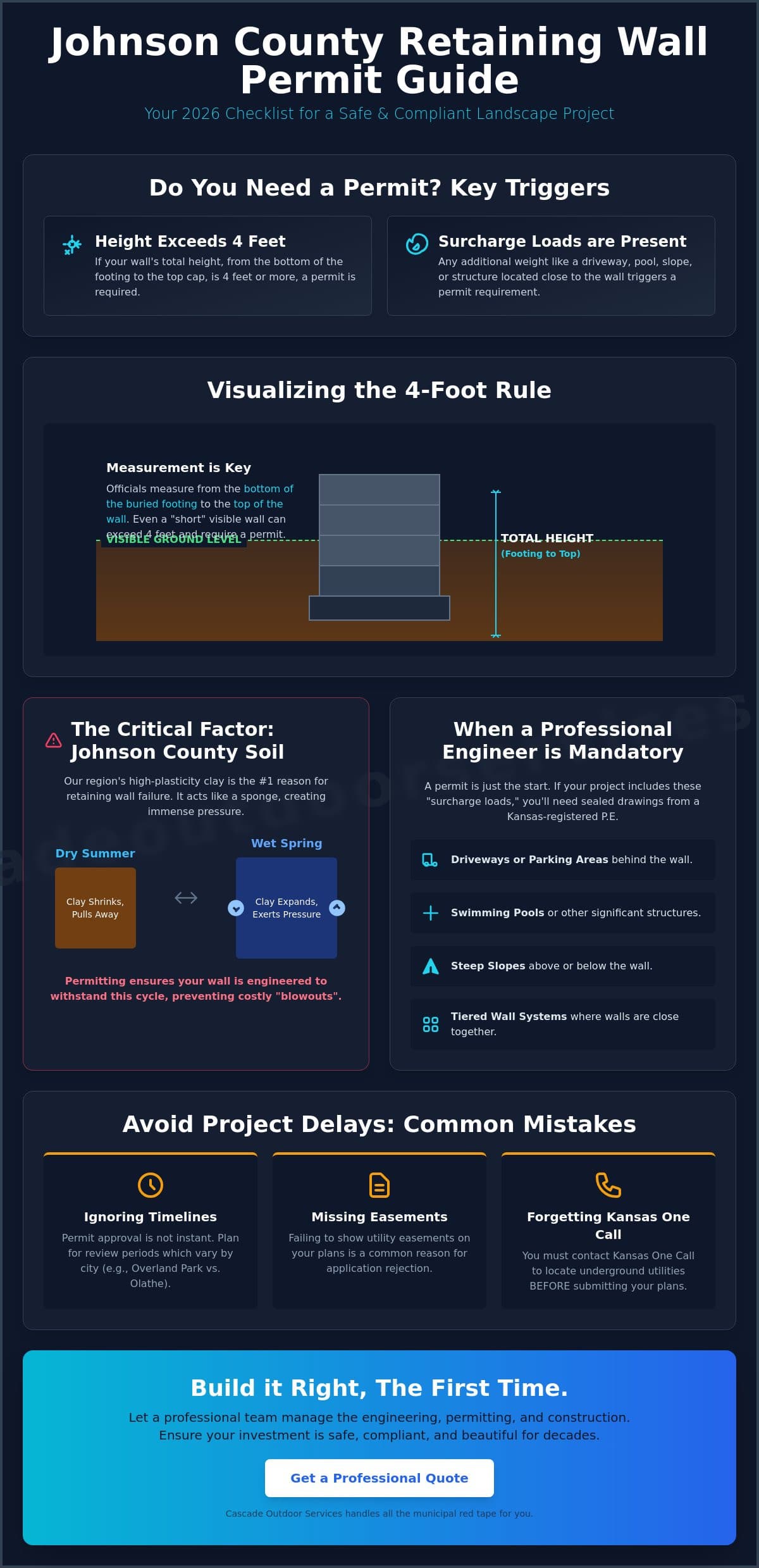

The 4-Foot Rule Explained

The most common threshold across Overland Park, Olathe, and Shawnee is the four-foot height limit. However, the way you measure that height is where many DIY projects run into trouble. The city doesn’t just care about what’s visible above the mulch. They measure from the very bottom of the buried footing to the top of the wall. If you’re building a segmental block wall and bury six inches of your base course, that depth counts toward your total height. Even “short” walls require permits if they support a slope, as the increased pressure changes the structural needs. For terraced or tiered systems, the rules are even more specific. If the upper wall is too close to the lower one, the city views them as a single, taller structure that requires a permit and professional oversight.

When Engineering Becomes Mandatory

Once a wall hits that four-foot mark or faces “surcharge” loads, a permit isn’t the only requirement; you’ll likely need a sealed drawing from a Kansas-registered Professional Engineer (PE). Surcharge refers to any extra weight pushing down behind the wall, such as a driveway, a swimming pool, or even a neighboring house. A PE applies the engineering principles of retaining walls to calculate soil pressure and ensure the structure won’t tip or slide over time. This is especially vital when your project sits near property lines or utility easements. If your project involves significant earthwork, you should also look into grading and drainage services to ensure you aren’t accidentally flooding a neighbor’s yard. This professional oversight protects your investment and ensures your landscape metamorphosis stays beautiful for decades.

Why Johnson County Soil Makes Permitting Critical

A permit in our region is more than just a legal formality; it’s a necessary response to the ground beneath our feet. The local soil is notoriously difficult, and the retaining wall permit requirements Johnson County KS are designed to address these geological realities before they lead to structural failure. When you apply for a permit, you aren’t just checking a box for the city. You’re ensuring your project is engineered to withstand the unique pressures of the Kansas landscape.

The primary challenge for any local structure is the high-plasticity clay found throughout Olathe, Overland Park, and Leawood. This clay behaves like a sponge. It swells significantly when saturated and shrinks during our intense summer droughts. Because of this movement, unpermitted walls often lean, crack, or “blow out” within just a few seasons. The permit process forces a standard of construction that accounts for this movement, requiring specific backfill materials that don’t expand like raw clay does. Ensuring proper grading and drainage is a core part of this approval, as it prevents water from pooling behind your new investment.

The Danger of Expansive Clay

Understanding Johnson County’s geology is essential for any property owner planning a structural change. Our clay is heavy and unforgiving. Johnson County clay can exert thousands of pounds of pressure against a wall during a heavy spring rain. Standard DIY wall kits often fail because they lack the engineered reinforcement, such as geogrid or massive footings, required to hold back this shifting weight. Without a permit and the professional oversight it brings, many homeowners find their walls succumbing to hydrostatic pressure, which is the force exerted by standing water trapped in the soil.

Drainage Requirements for Permit Approval

City inspectors in Johnson County pay close attention to what happens behind the face of the wall. To secure permit approval, your plans must typically include a perforated drain tile and a substantial layer of clean gravel backfill. This system allows water to escape rather than building up pressure. Inspectors will also scrutinize “weep holes,” which are the small gaps designed to let moisture exit the structure. If these are missing or blocked, the wall is destined to fail. Integrating comprehensive yard drainage solutions is often the best preventative measure to keep your landscape stable and dry. If you’re concerned about how these rules apply to your specific lot, reaching out to an expert in segmental block retaining walls can help you navigate the technical demands of the city.

Municipal Variations: Overland Park vs. Olathe vs. Shawnee

While the county provides a general framework, the specific retaining wall permit requirements Johnson County KS vary significantly depending on which city hall governs your property. One homeowner might only need a simple site plan, while their neighbor two blocks away faces a full engineering review. Understanding these local nuances is the first step toward a successful landscape metamorphosis. Most jurisdictions have moved to digital portals to streamline the process, but the information they require remains highly specific to their local zoning laws.

For those living in unincorporated Johnson County, the process runs through the MyGovernmentOnline portal. The county currently enforces the 2018 International Codes. You can expect a standard plan review fee of $50 for most residential projects. If you’re in a more rural area, pay close attention to set-back requirements. These rules dictate how far your wall must be from property lines or septic fields. In 2026, typical turnaround times for residential permits range from seven to ten business days, provided your documentation is complete from the start.

Overland Park and the ePLACE System

Overland Park utilizes the ePLACE portal for all structural permit applications. To begin, you’ll need to create a digital account and upload your site plans in a high-resolution PDF format. If your project sits near a street or sidewalk, you may also need a Right-of-Way permit. This ensures your construction doesn’t interfere with city utilities or public access. Once the work is finished, don’t assume the process is over. Overland Park requires a final inspection to close the permit. This step confirms the wall matches the approved plans and meets all safety standards for segmental block retaining walls or timber structures.

Olathe and Shawnee Specifics

Shawnee and Olathe have their own distinct priorities. In Shawnee, officials place a heavy emphasis on erosion control measures during the construction phase. Your site plan must show how you’ll prevent silt and clay from washing into the city storm drains. Olathe requires strict verification of contractor licensing. They’ll only issue permits to professionals who hold a valid Johnson County contractor’s license. This protects you by ensuring the craftsman on your property has the proper credentials. If you need to speak with a code official directly, you can reach the departments at these numbers:

• Overland Park Building Safety: 913-895-6205
• Olathe Building Codes: 913-971-8650
• Shawnee Building Division: 913-742-6010

Navigating these portals can be a burden for busy property owners. Choosing a partner who specializes in grading and drainage services often includes the benefit of having a professional manage these municipal filings for you. This ensures your project moves from inspiration to implementation without the frustration of technical delays.

Common Mistakes That Delay JoCo Permit Approval

Even the most well-intended landscape metamorphosis can stall if the paperwork isn’t perfect. The retaining wall permit requirements Johnson County KS are designed to prevent structural failure, but they also act as a rigorous checklist for project readiness. One of the most frequent delays stems from homeowners submitting generic manufacturer spec sheets instead of a site-specific plan. While a block manufacturer’s brochure shows what a product can theoretically do, it doesn’t account for your property’s specific slope or the heavy clay soil we discussed earlier.

Another common pitfall is failing to contact Kansas One Call (811) before submitting your application. City officials expect you to know exactly where your underground utilities are located before you ask for approval. If your proposed wall sits on top of a gas line or a water main, your permit will be denied immediately. Some homeowners think they can skip the line by building first and asking for permission later. This “after-the-fact” approach is a costly gamble. It often leads to double permit fees and, in some cases, a city mandate to tear the wall down entirely so an inspector can verify the buried footing.

The Importance of an Accurate Site Plan

A “to-scale” drawing is non-negotiable for city approval. This plan must show existing structures, property lines, and the exact location of your new wall. You should also clearly mark the path of any French drains or downspout extensions. Identifying easements on your property deed before you draw is critical. An easement is a legal right for a utility company or the city to access a portion of your land. If your drawing shows a wall cutting through a public drainage easement, the review process will stop until the design is moved or modified.

Navigating Utility Easements

Building over a utility line is a risk that city inspectors won’t tolerate. If no other building site exists on your lot, you might have to apply for an “encroachment permit.” This is a secondary, often more complex layer of red tape that requires separate approval. The danger of ignoring these boundaries is real. If a water main breaks under your unpermitted wall, the city has the legal right to demolish your structure to reach the pipe. They aren’t required to pay to rebuild it, either. By following the rules from the start, you protect your investment from future city-led demolition.

If you want to avoid these technical headaches and ensure your project stays on schedule, consider our grading and drainage services where we handle the site plan details and utility checks for you.

Professional Permitting: How Cascade Outdoor Services Handles the Red Tape

Navigating the retaining wall permit requirements Johnson County KS shouldn’t feel like a second job for a homeowner. We’ve discussed the technical demands of our heavy clay soil and the specific digital portals used by Olathe and Overland Park. It’s a lot to manage. Cascade Outdoor Services provides a turnkey solution that handles every detail from the initial site plan to the final city inspection. We take pride in the physical labor and the paperwork so you don’t have to.

Our expertise covers a wide range of structural solutions, including Timber Retaining Walls and segmental block systems. In 2026, our planning process is more rigorous than ever. We follow a steady, purposeful progression for every project:

• Initial soil evaluation to assess clay plasticity and moisture retention.
• Professional site mapping to identify utility easements and property lines.
• Custom structural design tailored to your specific municipal requirements.
• Management of all digital permit submissions through city portals.

This grounded approach ensures that the structural planning we submit to the city isn’t just a guess; it’s a blueprint for a wall that will stand for decades. We move seamlessly from the practicalities of engineering to the aesthetic appeal of a polished environment.

Why a Licensed Contractor Matters

Choosing a licensed professional isn’t just about quality; it’s about legal protection. In Johnson County, municipalities require a valid contractor’s license to even apply for a structural permit. When Cascade pulls the permit for your project, the legal liability for code compliance shifts from you to us. We maintain the specific Certificate of Insurance (COI) required by local building departments, ensuring that your property is protected throughout the metamorphosis. You can learn more about our commitment to excellence on our retaining wall contractor pillar.

Ensuring Longevity and Compliance

Professional engineering might seem like an added hurdle, but it’s actually a strategy for long-term savings. Meeting the retaining wall permit requirements Johnson County KS ensures your wall won’t need expensive repairs or a total rebuild five years down the road. We’re committed to getting it right the first time because we value the beauty and safety of our community’s shared spaces. Our team ensures that every “weep hole” and drain tile meets the high standards of local inspectors. Don’t risk a code violation or a structural failure. Contact Cascade Outdoor Services for a structural evaluation today and let us transform your landscape with the peace of mind you deserve.

Secure Your Property with Professional Oversight

Building a lasting structure in our region requires more than just stacking blocks; it’s about respecting the local geology and the municipal laws that protect your investment. You now know that the four-foot height threshold and the presence of “surcharge” loads are the primary triggers for a building permit. You also understand that our heavy clay soil makes professional engineering a necessity rather than an option. By following this 2026 checklist, you’ve taken the first step toward a safe and compliant landscape metamorphosis.

Cascade Outdoor Services has been locally owned and operated since 2016. As specialists in JoCo clay soil management, we provide A+ rated structural outdoor construction that takes the guesswork out of the retaining wall permit requirements Johnson County KS. We handle the technical site plans and city portals so you don’t have to. Schedule a Professional Retaining Wall Consultation today to ensure your project is built with excellence. Your property is a vital extension of your home; let’s build a foundation you can trust through every season.

Frequently Asked Questions

Is a permit required for a retaining wall under 4 feet in Johnson County?

Generally, walls under 4 feet do not require a permit, but exceptions exist. If the wall supports a “surcharge” like a driveway or pool, or if it’s located in a drainage easement or floodplain, you must secure approval regardless of height. In Shawnee, any wall supporting a surcharge requires a permit even if it’s only a foot tall.

How much does a retaining wall permit cost in Overland Park or Olathe?

Fees are typically based on the project’s total valuation. In Overland Park, projects valued under $5,000 cost $30, while those between $5,000 and $19,000 cost $50. Unincorporated Johnson County usually charges a flat $50 plan review fee for residential projects, with permit fees calculated separately based on the project’s value.

Do I need a land disturbance permit for my wall project?

You will likely need a land disturbance permit if your project involves shifting more than 50 cubic yards of earth. This is common for larger landscape metamorphosis projects that involve significant grading or slope correction. This permit ensures that your construction doesn’t cause erosion or sediment runoff into the city’s storm sewer system.

What happens if I build a retaining wall without a permit in KS?

Building without a permit can lead to expensive “after-the-fact” penalties and immediate stop-work orders. In severe cases, the city may require you to demolish the wall to inspect the buried footings and drainage systems. Additionally, unpermitted structural work can complicate your home’s title and value during a future property sale.

Does a tiered wall count as one wall or two for permit height?

In most jurisdictions, tiered walls are treated as a single structure if the upper wall is built within a specific distance of the lower one. If the horizontal gap is less than the height of the lower wall, their combined height is used to determine if you meet the 4-foot threshold for retaining wall permit requirements Johnson County KS.

How long does it take for the city to approve a retaining wall plan?

Most residential permit applications in our area are processed within seven to ten business days. This timeline assumes your site plan is complete and clearly shows all easements, property lines, and drainage details from the start. Digital submissions through portals like ePLACE can sometimes speed up the initial review process.

Do I need a survey to get a retaining wall permit?

While a formal boundary survey isn’t always mandatory for every project, you must provide an accurate “to-scale” site plan. Because building over property lines or utility easements results in an automatic permit denial, having a professional survey is the safest way to avoid costly construction delays and legal disputes with neighbors.

Can I pull a homeowner permit or does my contractor have to do it?

Homeowners can apply for permits themselves, but it’s usually better for the licensed contractor to manage the process. This shifts the legal liability for meeting retaining wall permit requirements Johnson County KS to the professional. It also ensures the city verifies the contractor’s insurance and licensing before any physical labor begins on your property.
